Rad-87

Upgradable rainbow® technology in a versatile, easy-to-use bedside monitor

Choose the noninvasive measurements that are right for your clinical setting—oxygen saturation, pulse rate, and perfusion index in addition to total hemoglobin, total arterial oxygen content, pleth variability index, carboxyhemoglobin, methemoglobin, and respiration rate.

  • > Featuring Masimo SET® pulse oximetry, proven in more than 100 independent and objective studies.¹
  • > Upgradable Masimo rainbow® SET technology platform lets you add total hemoglobin (SpHb®) and total arterial oxygen content (SpOC™) through simple field-installed software upgrades.
  • > Additional upgrades allow you to continuously and noninvasively measure carboxyhemoglobin (SpCO®), methemoglobin (SpMet®), pleth variability index (PVI®), and acoustic respiration rate (RRa™).

Built-in Radio for Communication with Masimo Patient SafetyNet*

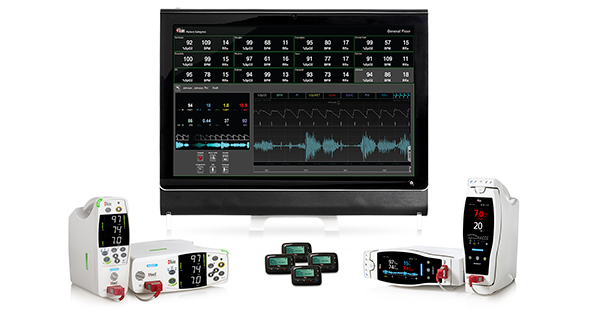

Masimo Patient SafetyNet, the remote monitoring and clinician notification system

The Rad-87 features a built-in 802.11 radio, allowing for bidirectional wireless communication with Masimo Patient SafetyNet™, the remote monitoring and clinician notification system that helps you keep patients safe on general care floors.

Custom Configuration Options:

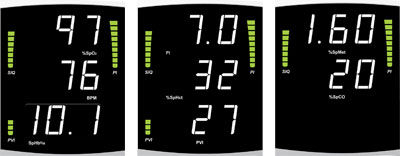

Rad-87 configuration options

Rad-87 display button


In addition to SpO2 and pulse rate, the Rad-87 allows you to select and display either SpHb, PVI or RRa on the main screen, with additional measurements displayed on subsequent screens accessed with the press of a button.

Rad-87 one-touch alarm button
Instantly access, view, or modify alarm settings at the bedside.
Rad-87 sensitivity button
Choose APOD®, Normal, or Max sensitivity with the touch of a button and verify settings at a glance.

Features:

  • A simple, user-centered design allows activation of many features with only a single touch.
  • Easy-to-read, high-contrast display eliminates confusion common with many bedside monitors.
  • One platform, multiple measurements—fully upgradable to all rainbow measurements.
  • Alarms and alerts can be modified at the bedside or via the Masimo Patient SafetyNet Remote Monitoring and Clinician Notification System.
  • Perfusion Index (PI) with trending capability indicates arterial pulse signal strength and may identify patient compromise.
  • Compatible with Philips Vuelink™ device interface module.
  • Adaptive Threshold Alarm™ option is designed to reduce nuisance alarms by dynamic adjustment of the audible alarms based on the patient’s baseline value and the fixed alarm threshold.
  • Signal I.Q.® provides signal identification and quality indication during excessive motion and low signal-to-noise situations.
  • Compatible with 802.11a/b/g.

At-A-Glance Displays:

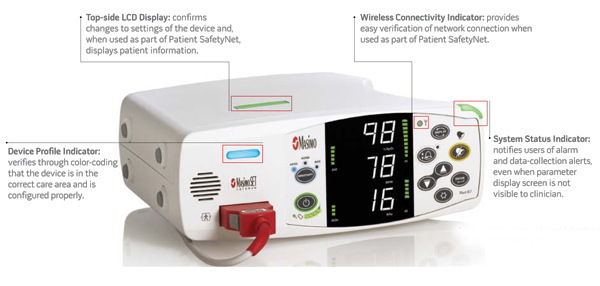

At-a-glance diagram of the Rad-87's displays

¹ Shah N et al. Journal of Clinical Anesthesia. 2012. In press.

* The use of the trademark Patient SafetyNet is under license from University HealthSystem Consortium.
